Valved plug, with G-Inside Thread
Datablad
Stand 15.5.2025
- Hurtigkuplinger /
- Niederdruck Schnellverschlusskupplungen

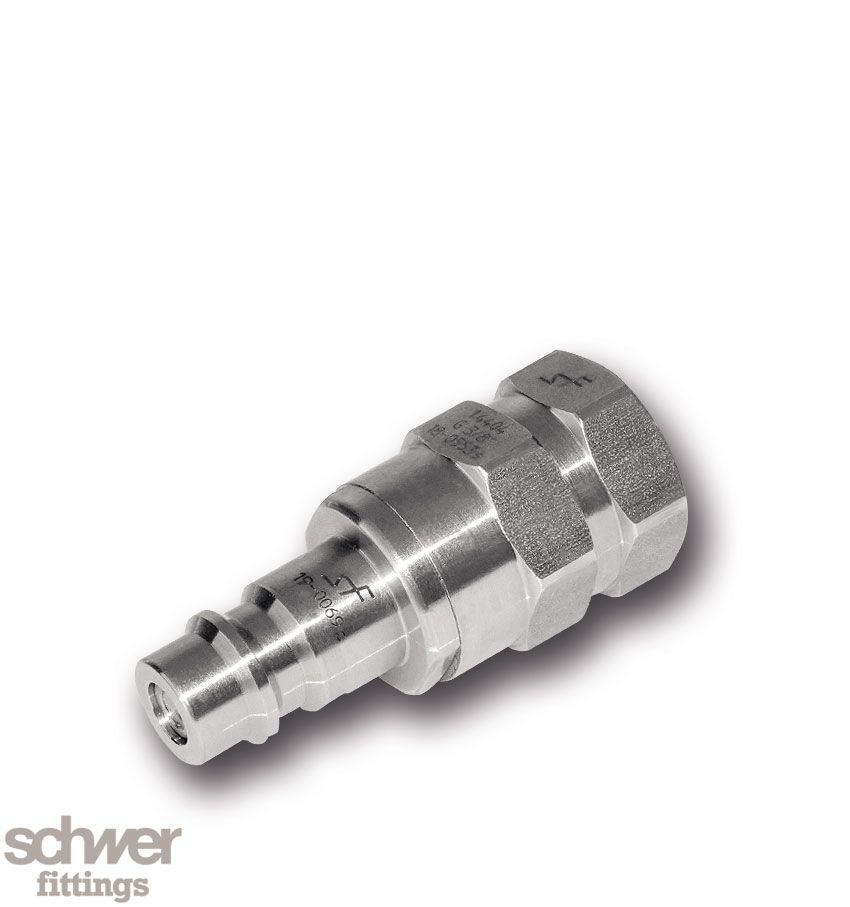

Valved plug, with G-Inside Thread
QC-MCG B
for double shut-off coupling system, for liquids and gases, one-hand operation, with parallel BSP thread to EN ISO 228-1
Valved plug, with G-Inside Thread
QC-MCG B
for double shut-off coupling system, for liquids and gases, one-hand operation, with parallel BSP thread to EN ISO 228-1
Beskrivelse av
Detaljer
Compatible with the widely used EURO profile. Available with parallel BSP thread to EN ISO 228-1 (inside or outside) or with hose barb. Material for seal: FKM. Other sealing materials upon request. Temperature Range -20° C to 150° C.
All couplings are designed and manufactured according to Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters of more than 25 mm up to and including 32 mm must not be used for pumping liquid or gaseous fluids of group 1 (hazardous) according to the Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters of more than 32 mm may only be used for pumping group 2 (non-hazardous) liquid fluids according to the Pressure Equipment Directive PED 2014/68/EU. If used with other media, a review by Schwer Fittings should be requested.

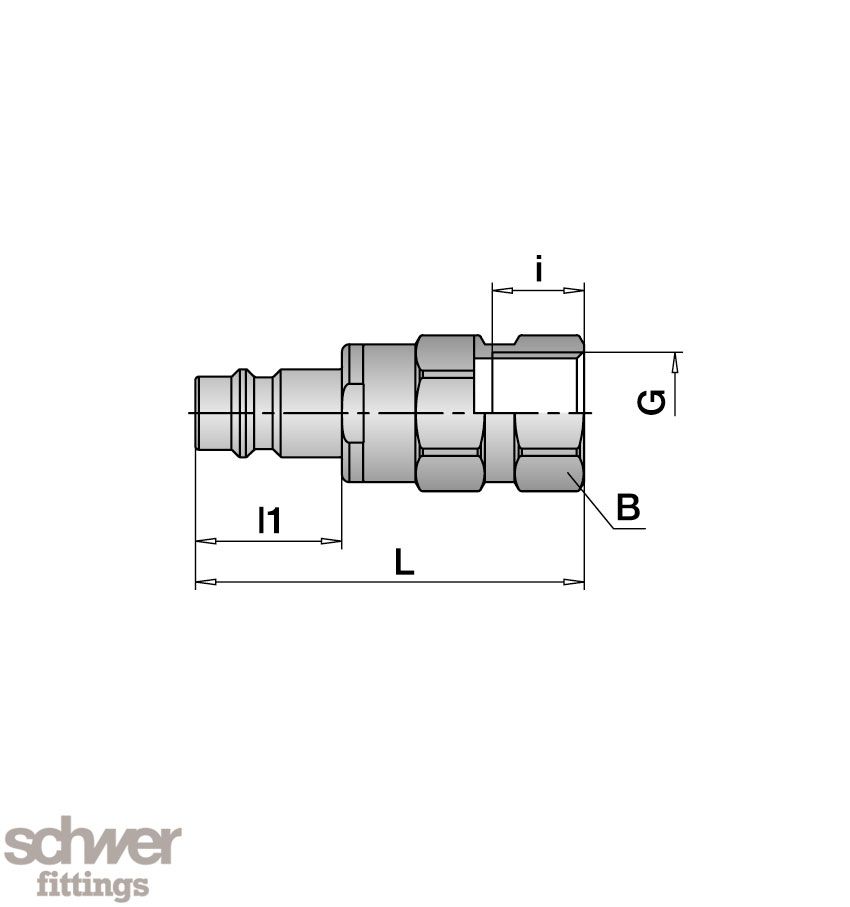

Tekniske data og dimensjonstegninger
Vennligst velg tilkoblinger.
